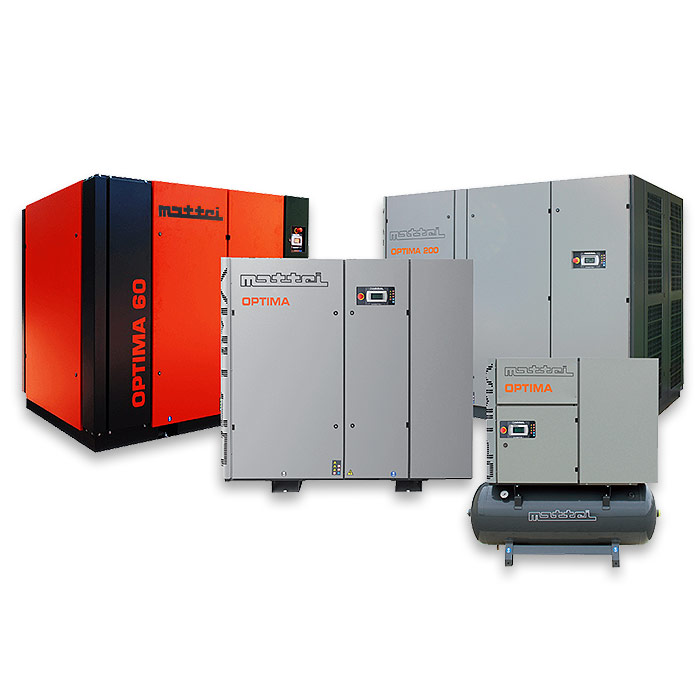

Mattei Optima Series Click for Larger View

Call us TODAY at 727-847-4900 or
Toll Free at 800-761-4298

Request A Quote!

Savings On Energy

Mattei Optima Series Air Compressors

89 to 1,251 SCFM
OPTIMA Series quiet cabinet constant-duty Rotary Vane Compressors feature an inverter to match their operation to suit the load profile required by the compressed air system to ensure maximum energy savings under varying air demands. The inverter adjusts the motor’s rotational speed, adapting the air delivered by the compressor to the actual air demand. OPTIMA can save up to 35% of the annual operating costs. Ideal for automotive, commercial and industrial applications.

All models are equipped with MaestroXS microprocessor controllers and protection system, AC inverters, premium efficient TEFC motors, quiet acoustic enclosures, air-cooled aftercoolers, intelligent timed electronic condensate drain and separator kits and are filled with Mattei Rotoroil 8000 F2 synthetic oil.

“W” Version includes water-cooled oil and after cooler.

• Energy Efficiency: All Mattei’s compressors have a 1:1 ratio between the electric motor speed and that of the airend. This means greater energy efficiency and higher performances. Compared to other technologies, rotary vane compressors guarantee a superior internal air seal, together with a consistent and long lasting performance.

• Excellent Air Quality: Our excellent filtering systems boast a filtering efficiency of up to 99%, while our unique three-stage oil separating system can reduce oil carryover in the air to less than 1 ppm.

• Simplicity: Mattei’s rotary vane air compressors are quiet and can be located almost anywhere. They are quickly installed and take up a limited amount of space. Their accessible design makes maintenance operations simple and straightforward.

• Low Operating Costs: Low Maintenance: Mattei’s rotary vane compressors are designed to achieve 100,000 hours operating life without the need to replace any blades or other metal parts. The long operating life of a Mattei compressor is assured by high quality machining which is the essence of rotary vane air compressors.

OPTIMA SERIES(1)(2) - BASE MOUNT, AIR-COOLED
Model(s): OPTIMA 30, OPTIMA 37, OPTIMA 45, OPTIMA 60, OPTIMA 75, OPTIMA 90, OPTIMA 110, OPTIMA 132, OPTIMA 200
*Scroll to the right on mobile to see entire chart
   Model
HP
kW
PSIG
CFM
dB(A)
NPT
OPTIMA 30
40
30
102-145
89-189
74
2"
OPTIMA 37
50
37
102-145
116-129
74
2"
OPTIMA 45
60
45
102-145
133-282
74
2"
OPTIMA 60
75
60
102-145
192-382
68
2"
OPTIMA 75
100
75
102-145
245-484
68
2"
OPTIMA 90
120
90
102-145
292-582
68
2"
OPTIMA 110
150
110
102-145
360-708
69
2-1/2"
OPTIMA 132
175
132
102-145
421-830
69
2-1/2"
OPTIMA 200
275
200
102-145
635-1,251
75
ASA 5" Class 150
Working pressures: 95 psig for 102 psig through 138 psi for 145 psi
(1) Note: Available in 460 or 575V/3ph/60hz
(2) OPTIMA 30 through 200 available water-cooled.
Note: Product is built with UL/ETL/CSA approved components. Agency approval is available at no extra cost if specified on initial purchase order. Purchase order must state
UL or CSA approval is required for the entire compressor. May affect lead times.


OPTIMA SERIES - BASE MOUNT, WATER-COOLED
Model(s): OPTIMA 30 W, OPTIMA 37 W, OPTIMA 45 W, OPTIMA 60 W, OPTIMA 75 W, OPTIMA 90 W, OPTIMA 110 W, OPTIMA 132 W, OPTIMA 200 W
*Scroll to the right on mobile to see entire chart
   Model
HP
kW
PSIG
CFM
dB(A)
NPT
OPTIMA 30 W
40
30
102-145
89-189
74
2"
OPTIMA 37 W
50
37
102-145
116-129
74
2"
OPTIMA 45 W
60
45
102-145
133-282
74
2"
OPTIMA 60 W
75
60
102-145
192-382
68
2"
OPTIMA 75 W
100
75
102-145
245-484
68
2"
OPTIMA 90 W
120
90
102-145
292-582
68
2"
OPTIMA 110 W
150
110
102-145
360-708
69
2-1/2"
OPTIMA 132 W
175
132
102-145
421-830
69
2-1/2"
OPTIMA 200 W
275
200
102-145
635-1,251
75
ASA 5" Class 150


Advanced System Controllers

MAESTRO XS
All OPTIMA compressors are, as standard, fitted with a MaestroXS electronic controller. Thanks to this device the compressors are programmed to work in two different operating modes: “Neutral Zone” and “PID”. OPTIMA adjusts its operation to the load profile required by the system. The inverter modifies the motor rotational speed, adjusting the air flow supplied by the compressor to the actual requirement of the system.

In PID mode the controller uses the average of the set up values as the target pressure and strives to keep the pressure at this value, by increasing or reducing the rotational speed.


Mattei MAESTRO XS System Controller

*Scroll to the right on mobile to see entire chart
   Description
Models
Code
Condensate drain and separator kit
OPTIMA 30-37-45 (W)
OPTIMA 60-75-90 (W)
OPTIMA 110-132 (W)
OPTIMA 200 (W)
IF54A34673
IF54A34771
IF54A35023
IF54A35243
High efficiency intake filter kit
OPTIMA 30-37-45 (W)
IF54D60751
Maestro XS converting serial board
OPTIMA 30-200 (W)
AC40C23981
Cabinet Heater kit
(protects compressor to +14°F ambient)
OPTIMA 30-45 (W)
OPTIMA 60-90 (W)
OPTIMA 110-132 (W)
OPTIMA 200 (W)
IF54A38389
IF54A38390
IF54A38391
IF54A38392





OPTIMA SERIES(1)(2) - BASE MOUNT, AIR-COOLED

*Scroll to the right on mobile to see entire chart
Model
Length (in)
Width (in)
Height (in)
Weight (lbs net)
OPTIMA 30
72
38
66
1,808
OPTIMA 37
72
38
66
1,940
OPTIMA 45
72
38
66
2,072
OPTIMA 60
95
49
74
3,858
OPTIMA 75
95
49
74
4,078
OPTIMA 90
95
49
74
4,343
OPTIMA 110
92
55
78
5,710
OPTIMA 132
92
55
78
6,349
OPTIMA 200
106
70
88
10,472


OPTIMA SERIES - BASE MOUNT, WATER-COOLED
*Scroll to the right on mobile to see entire chart
Model
Length (in)
Width (in)
Height (in)
Weight (lbs net)
OPTIMA 30 W
72
38
66
1,851
OPTIMA 37 W
72
38
66
1,984
OPTIMA 45 W
72
38
66
2,117
OPTIMA 60 W
95
49
74
3,946
OPTIMA 75 W
95
49
74
4,167
OPTIMA 90 W
95
49
74
4,431
OPTIMA 110 W
92
55
78
5,886
OPTIMA 132 W
92
55
78
6,526
OPTIMA 200 W
106
70
88
10,913
